Model Number: BNM-650

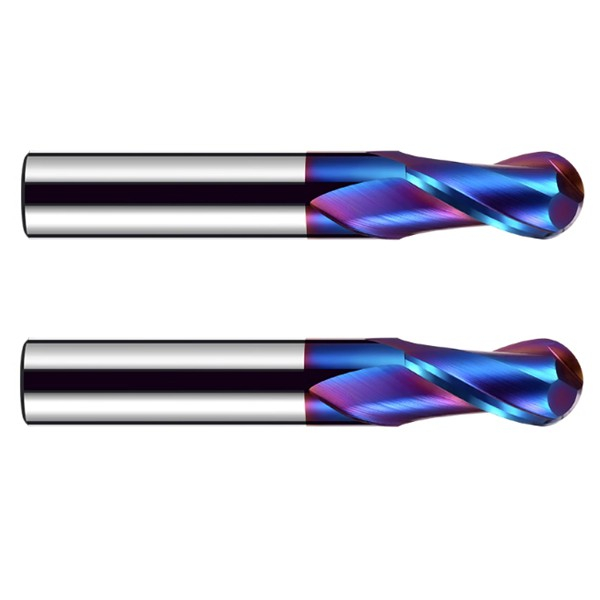

Made of high hardness raw carbide material, high durable and strength. Special for high speed and high hardness processing, with Nano copper coating on the flute, it can cut 65HRC work material after heat treatment, from roughing to finishing. Also it will reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
| Part Number | R | Shank/mm | Flute Length/mm | Overall Length/mm | Flute |
|---|---|---|---|---|---|
| BNM04010050-650 | R0.5 | 4 | 2 | 50 | 2 |
| BNM04015050-650 | R0.75 | 4 | 3 | 50 | 2 |
| BNM04020050-650 | R1.0 | 4 | 4 | 50 | 2 |
| BNM04025050-650 | R1.25 | 4 | 5 | 50 | 2 |
| BNM04030050-650 | R1.5 | 4 | 6 | 50 | 2 |
| BNM03030050-650 | R1.5 | 3 | 6 | 50 | 2 |
| BNM04035050-650 | R1.75 | 4 | 7 | 50 | 2 |
| BNM04040050-650 | R2.0 | 4 | 8 | 50 | 2 |
| BNM06050050-650 | R2.5 | 6 | 10 | 50 | 2 |
| BNM05050050-650 | R2.5 | 5 | 10 | 50 | 2 |
| BNM06060050-650 | R3.0 | 6 | 12 | 50 | 2 |
| BNM08080060-650 | R4.0 | 8 | 26 | 60 | 2 |
| BNM10100075-650 | R5.0 | 10 | 20 | 75 | 2 |
| BNM12120075-650 | R6.0 | 12 | 24 | 75 | 2 |
| BNM14140100-650 | R7.0 | 14 | 30 | 100 | 2 |
| BNM16160100-650 | R8.0 | 16 | 30 | 100 | 2 |
| BNM18180100-650 | R9.0 | 18 | 30 | 100 | 2 |
| BNM20200100-650 | R10.0 | 20 | 30 | 100 | 2 |
| BNM22220100-650 | R11.0 | 22 | 30 | 100 | 2 |
| BNM25250100-650 | R12.5 | 25 | 30 | 100 | 2 |
Q: Are you a manufacturer? Do you have a factory?
A: We are a manufacturer. Our factory is located in HUIZHOU City, GUANGDONG Province. It is very close to SHENZHEN. Welcome to visit our factory!
Q: What machine do you use?
A: We have 5-Axis automatic CNC grinding machines from abroad, Walter from Germany, ANCA from Australia and Top Work from Taiwan.
Q: Is free shipping possible?
A: We don't offer free shipping service, but we will give you some discount if you buy large quantity.
Q: How about the delivery time?
A: According to the sizes and quantity, delivery time is different. Usually 3-10 days.
