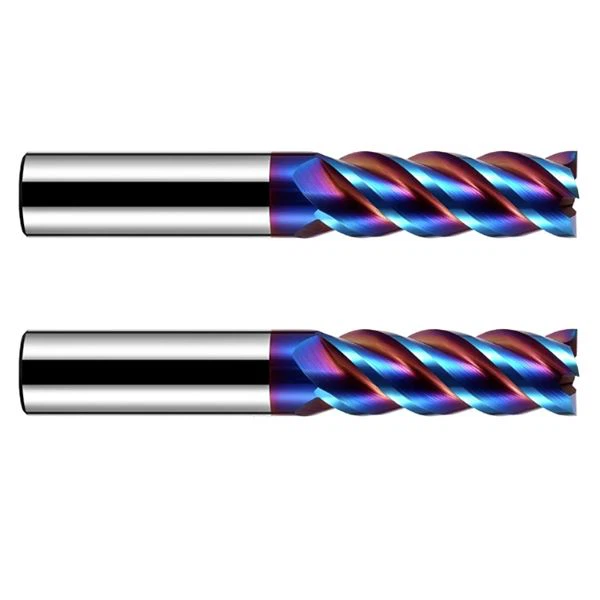

EM650 65HRC Super Hard Carbide Nano Blue Coated End Mill Tools With Dry Cooling

Product Name: 65HRC Super Hard Carbide Nano Blue Coated End Mill Tools with Dry Cooling
Model Number: EM-650

Product Parameters:

1. Brand name: AZZKOR
2. Place of origin: Guangdong, China
3. Grade: ZAT650
4. Raw material: Sandvik carbide from Sweden
5. Grain size: Super micro grain 0.4μ
6. Type: Square, Flat, end mill tools
7. Flute: 4 Flute
8. Helix angle: 35° or 45° as requested
9. Diameter: 1mm-25mm
10. Overall Length: 50-100mm
11. Coating/Coverage: Nano-B, Blue color
12. Precision: High precision
13. HRC: for up to 65HRC work material
14. Controlling mode: CNC
15. Work material: Copper, Alloy steel, Tool steel, Carbon steel, Cast Iron, Stainless steel and high hardness steel after heat treatment

Main Features:
Made of high hardness raw carbide material, high durable and strength. Special for high speed and high hardness processing. With nano blue coating on the flute, it can cut 65HRC work material after heat treatment, from roughing to finishing. It reduces tool changes and shaking during processing, saves production time, and improves efficiency.

Specifications table:
