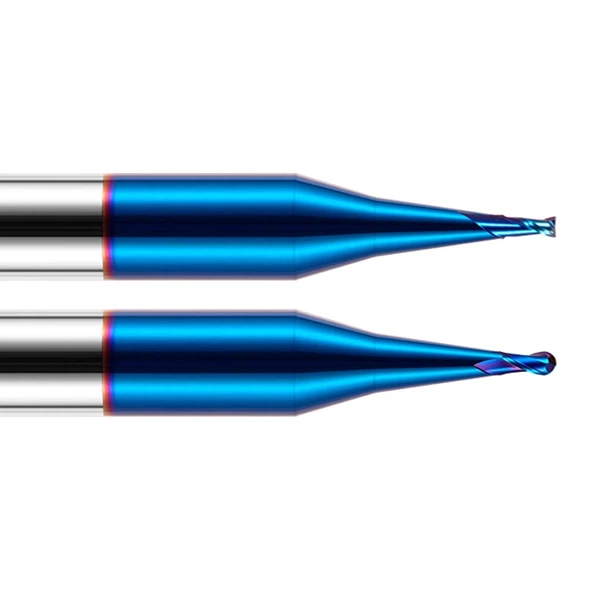

MM600 MB600 Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits For 60HRC

Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits for 60HRC

MM600 MB600 Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits For 60HRC
Description

MM600 MB600 Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits For 60HRC
MM600 MB600 Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits For 60HRC
MM600 MB600 Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits For 60HRC

Product Name: Dia 0.2-0.9mm Nano Coated Micro Carbide End Mill Bits for 60HRC
Model Number: MM/MB-600

Product Parameters:

  • 1. Brand name: AZZKOR
  • 2. Place of origin: Guangdong of China
  • 3. Grade: AZZKOR600
  • 4. Raw material: Tungsten Carbide K44 from Guhring company in Germany
  • 5. Grain Size: Micro grain 0.5μ
  • 6. Type: Micro flat, Micro ball end mill bits
  • 7. Flute: 2 Flute
  • 8. Diameter: 0.2mm-0.9mm
  • 9. Overall Length: 50mm
  • 10. Coating/Coverage: Nano-C, Copper color
  • 11. Cobalt: 12%
  • 12. Bending strength: 4300Pa
  • 13. Helix angle: 35°
  • 14. HRC: for up to 60HRC work material
  • 15. Controlling mode: CNC
  • 16. Work material: Alloy steel, Tool steel, Carbon steel, Cast Iron, Stainless steel and High hardness steel after heat treatment

Main Features:

Made of high hardness raw carbide material, high durable and strength. Special for high speed and high hardness processing, with Nano copper coating on the flute, it can cut 60HRC work material after heat treatment, from roughing to finishing. Also it will reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.

Micro Flat End Mills

Part Number Dia/mm Shank/mm Flute Length/mm Overall Length/mm Flute
MM04002050-600 0.2 4 0.4 50 2
MM04003050-600 0.3 4 0.6 50 2
MM04004050-600 0.4 4 0.8 50 2
MM04005050-600 0.5 4 1.0 50 2
MM04006050-600 0.6 4 1.2 50 2
MM04007050-600 0.7 4 1.4 50 2
MM04008050-600 0.8 4 1.6 50 2
MM04009050-600 0.9 4 1.8 50 2

Micro Ball End Mills

Part Number R Shank/mm Flute Length/mm Overall Length/mm Flute
MB04002050-600 R0.1 4 0.4 50 2
MB04003050-600 R0.15 4 0.6 50 2
MB04004050-600 R0.2 4 0.8 50 2
MB04005050-600 R0.25 4 1.0 50 2
MB04006050-600 R0.3 4 1.2 50 2
MB04007050-600 R0.35 4 1.4 50 2
MB04008050-600 R0.4 4 1.6 50 2
MB04009050-600 R0.45 4 1.8 50 2

AZZKOR Tool is one of the largest dia 0.2-0.9mm nano coated micro carbide end mills for 60hrc manufacturers. We have professional factory which can produce cheap dia 0.2-0.9mm nano coated micro carbide end mills for 60hrc for you. Welcome to wholesale our products.
